Why wall formwork is the key to economical concrete construction
- High stability & pressure absorption
Modern wall formwork is designed to safely absorb high fresh-concrete pressures. This ensures clean concrete surfaces and minimises rework - a clear advantage for projects with fair-faced concrete requirements or thick walls.
- Flexible sizes & modular elements
Whether large-area frame formwork, hand-set elements or combinations for complex geometries: wall formwork systems can be quickly adapted to different wall heights, lengths and floor plans.
- Fast assembly & efficient workflows
Intelligent connection systems and well-thought-out components let teams shutter and strike walls faster - ideal for tight schedules, serial construction and demanding shell projects.
Where wall formwork is typically used:
- Residential & multi-storey construction
- Industrial and commercial buildings
- Infrastructure projects
- Fair-faced concrete architecture
- complex wall geometries and tall wall sections
Frame formwork
Modular wall formwork systems with steel or aluminium frames.
- very fast & precise
- system-bound
Timber/beam formwork
Flexible formwork made of timber/composite beams and formwork facing.
- maximum flexibility for geometries
- more assembly effort
Lightweight wall formwork
For interior walls, refurbishments and smaller components.
- good for small & tight areas
- limited load capacity
Large-area formwork
For tall walls and repeated concreting sections.
- ideal solution for high walls
- needs more handling & crane support
Circular/special formwork
For curved, special or architecturally complex wall geometries.
- perfect geometries for demanding shapes
- special product → limited reuse
CETRAC Parts + Service:
- Anchoring technology
- Push-pull props
- Connectors
- Working platforms
Cost + benefit: wall formwork
Wall formwork type | Effort | Cost | Benefit | Remarks |
|---|---|---|---|---|
| Frame formwork | low | medium - high | very high | fast & precise |
| Beam formwork | medium | medium | high | flexible for special shapes |
| Lightweight formwork | low | low | medium | for interior fit-out/refurbishment |
| Large-area formwork | medium - high | high | very high | ideal for tall walls |
| Circular/special formwork | medium | medium - high | high | for architecture & civil engineering |
| Accessories | low | low | medium | secures & complements the system |
Wall formwork available immediately in a wide selection:
| Category | Subtype | Designation | Length / dimensions |
|---|---|---|---|
| Wall formwork | Element | Wall formwork element | 270 × 240 cm |
| Wall formwork | Element | Wall formwork element | 270 × 120 cm |
| Wall formwork | Element | Wall formwork element | 270 × 90 cm |
| Wall formwork | Element | Wall formwork element | 270 × 72 cm |
| Wall formwork | Element | Wall formwork element | 270 × 60 cm |
| Wall formwork | Element | Wall formwork element | 270 × 30 cm |
| Wall formwork | Element | Multi-purpose element | 270 × 72 cm |
| Wall formwork | Corner | Inside corner | - |
| Wall formwork | Corner | Outside corner | - |
| Wall formwork | Corner | Hinged corner | - |
| Wall formwork | Adjustment | Length adjustment | 270 × 36 cm |
| Wall formwork | Special | Shaft element | - |
| Wall formwork | Accessories | Infill plate support | - |
| Wall formwork | Accessories | Push-pull prop | - |
| Wall formwork | Accessories | Alignment lock | - |
| Wall formwork | Accessories | End anchor | - |
| Wall formwork | Accessories | Connecting element / connector | - |
| Wall formwork | Accessories | Erection aid | - |
| Wall formwork | Pallet | Pallet for wall formwork | - |
Powered by CETRAC - your advantage in the formwork process
Our international team across warehouse, sales, marketing, logistics and development makes sure wall formwork is reliably available, transparently documented and professionally handled.
With EasyFlow, our digital scaffolding area manager, we are also building tools to digitally support formwork processes in the future - Powered by CETRAC.
FAQ - wall formwork
There is no one-size-fits-all figure - the price depends on system, wall area, specification and material condition. The biggest difference is whether you buy new or second-hand: at CETRAC you get inspected second-hand wall formwork up to 70% below the new price, with transparent prices instead of hidden costs.
The quickest way to work out your actual material requirements - and thus your costs - is the EasyFlow configurator. Whether buying or hiring makes sense for you is shown in our “buy or hire” comparison.
That depends on how often you shutter. For construction companies in regular operation, buying almost always pays off - second-hand material often amortises after just a few uses, and you build up your own assets with real resale value. For one-off or very short projects, hiring can be the more flexible choice.
With our buy-vs-hire calculator you can see immediately when the investment pays off for you. You will find an overview of all systems in the formwork overview.
You need wall formwork wherever vertical concrete structures are built: load-bearing and non-load-bearing walls, columns, piers, shafts, lift cores or basement exterior walls. The formwork gives the fresh concrete its shape and absorbs the high fresh-concrete pressure until the component has cured.
Depending on the project, frame formwork is used for straight surfaces or beam formwork for special shapes. You will find an overview of our complete range in the formwork overview.
Yes - and that is exactly what makes it so economical. High-quality frame formwork can be used several hundred times with good care. Decisive for service life are the frame material (steel is more robust than aluminium) and the condition of the formwork facing, which as a wearing part is simply replaced when needed.
Second-hand systems are therefore an attractive option: you save considerably compared with new material, without compromising on function. Whether buying or hiring is more worthwhile for you depends mainly on how often you use it.
Frame formwork consists of prefabricated steel or aluminium frames with the formwork facing already integrated. It is quick to assemble, robust and ideal for straight, recurring wall surfaces - the first choice in classic building construction.
Beam formwork, on the other hand, is assembled individually from beams, walers and formwork facing. This makes it more flexible for special heights, fair-faced concrete and unusual geometries, but requires more planning and assembly effort. Rule of thumb: frames for speed and standard dimensions, beams for flexibility and demanding surfaces.
Both variants and further systems can be found in our formwork range.
Yes. In many projects, straight walls meet curved structures - for example tanks, stairwells or curved facades. As long as the connection points and anchor grids are planned to match cleanly, circular formwork and wall formwork can be combined without problems.
It is important that the systems fit together. If you are unsure which components are compatible, we will be happy to help you choose.
As a rule, yes. Push-pull (alignment) props keep the formwork plumb and secure it against tipping, wind and one-sided concrete pressure during pouring. Especially with single-sided formwork or taller walls, they are indispensable for safety and dimensional accuracy.
The number required depends on wall height and length. You can work out the actual material requirements for your project directly in the EasyFlow configurator.
Very important - the formwork facing is the contact surface with the concrete and largely determines the final surface. An intact, smooth facing ensures clean fair-faced concrete surfaces, while worn boards can leave imprints, pores or discolouration.
Since the facing is a wearing part, it can be re-faced or replaced without you having to replace the whole frame. For demanding fair-faced concrete surfaces, freshly faced formwork is worthwhile; for secondary components, second-hand material is often sufficient.
How we fit second-hand frames with fresh facing is described under Doka formwork.
Wall Formwork
Wall formwork is one of the central systems in concrete construction. Working efficiently here not only reduces costs but also increases execution quality and speed. Modern wall formwork must be load-bearing, modular, easy to combine and reliably available - and that is exactly where we come in.
For construction companies, shell builders and formwork contractors, flexible wall formwork systems are crucial for delivering projects in a structured, safe and on-schedule manner.

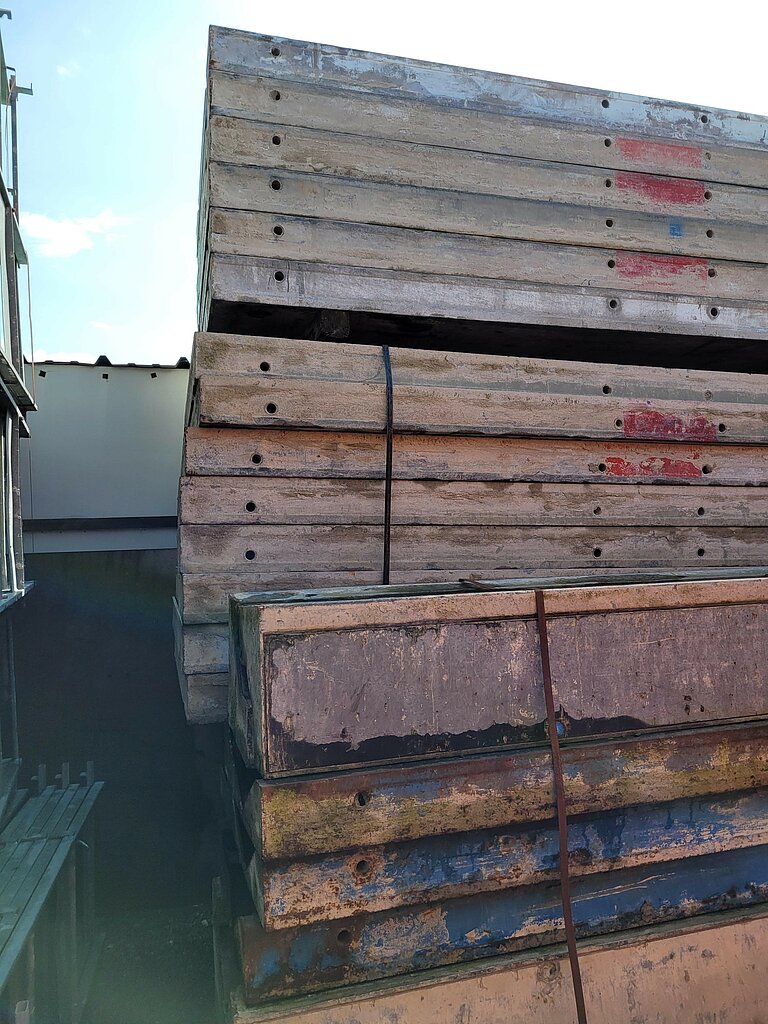

Doka Framax Formwork (used)
- Article-Nr:
- DFX1
- Weight:
- 13.037 kg
- Quality:
- Used

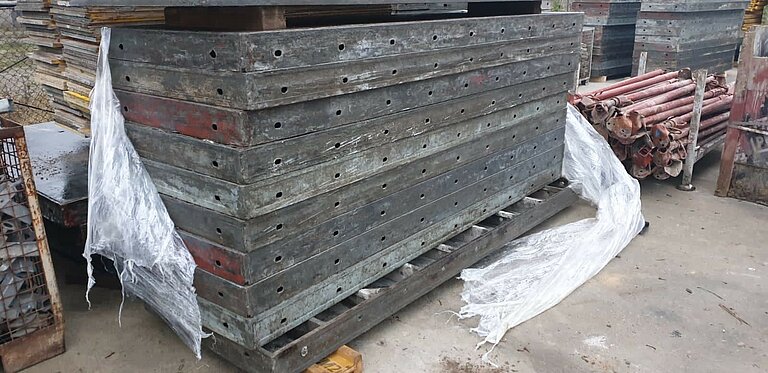

Hunnebeck Rasto Formwork (used)
- Article-Nr:
- HR1
- Weight:
- 3.016 kg
- Quality:
- Used
Peri Trio Panels + Accessories + Corners (used)
- Article-Nr:
- Trio
- Weight:
- 4.008 kg
- Quality:
- Used
Hunnebeck Manto Formwork (used)
- Article-Nr:
- HM1
- Weight:
- 42.005 kg
- Quality:
- Used
